From Manual to Fully Automated: How Immunomagnetic Beads Technology is Reshaping Sample Processing Workflows
2025-11-21
XinyuBio
723

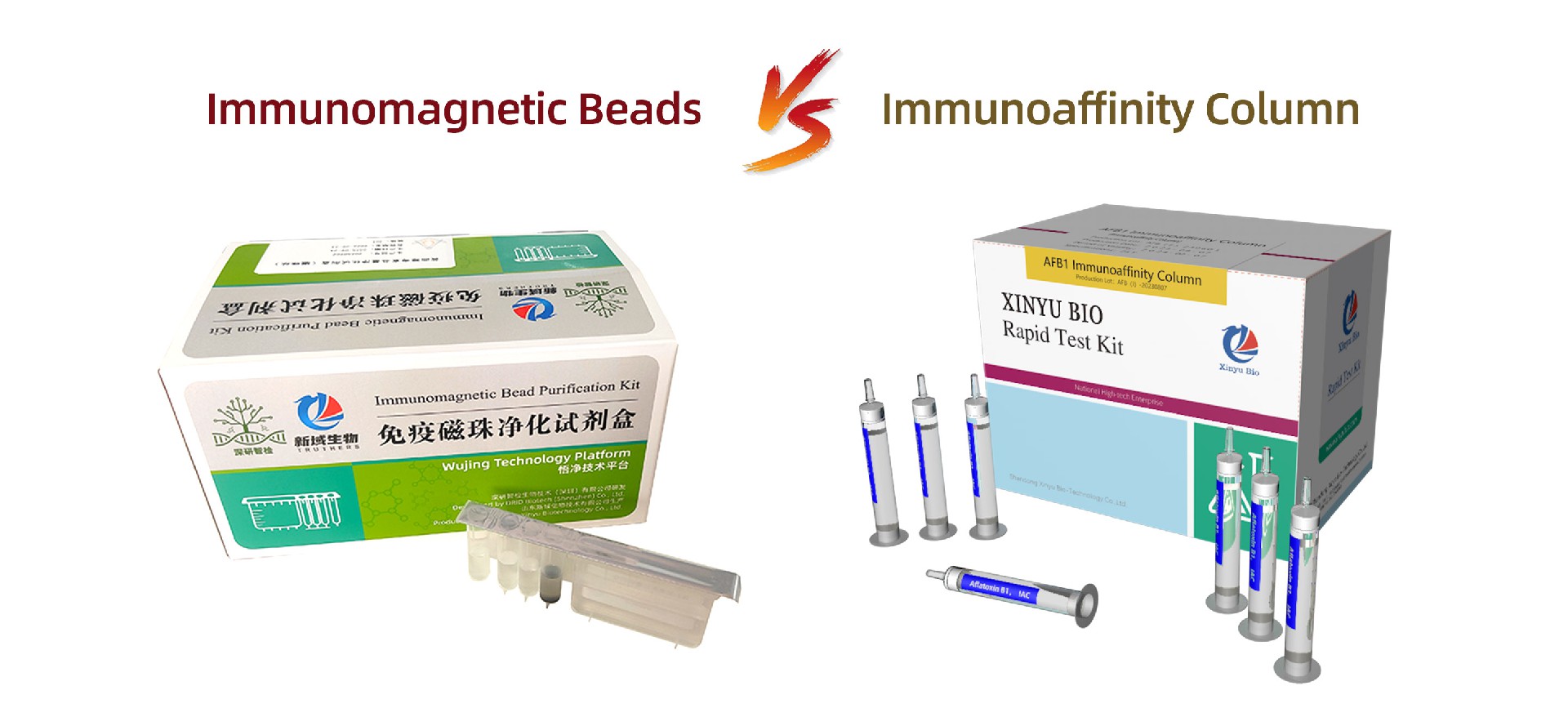

Immunomagnetic Beads vs. Immunoaffinity Column Comparison
Comprehensive comparison based on automation level, performance parameters and core principles

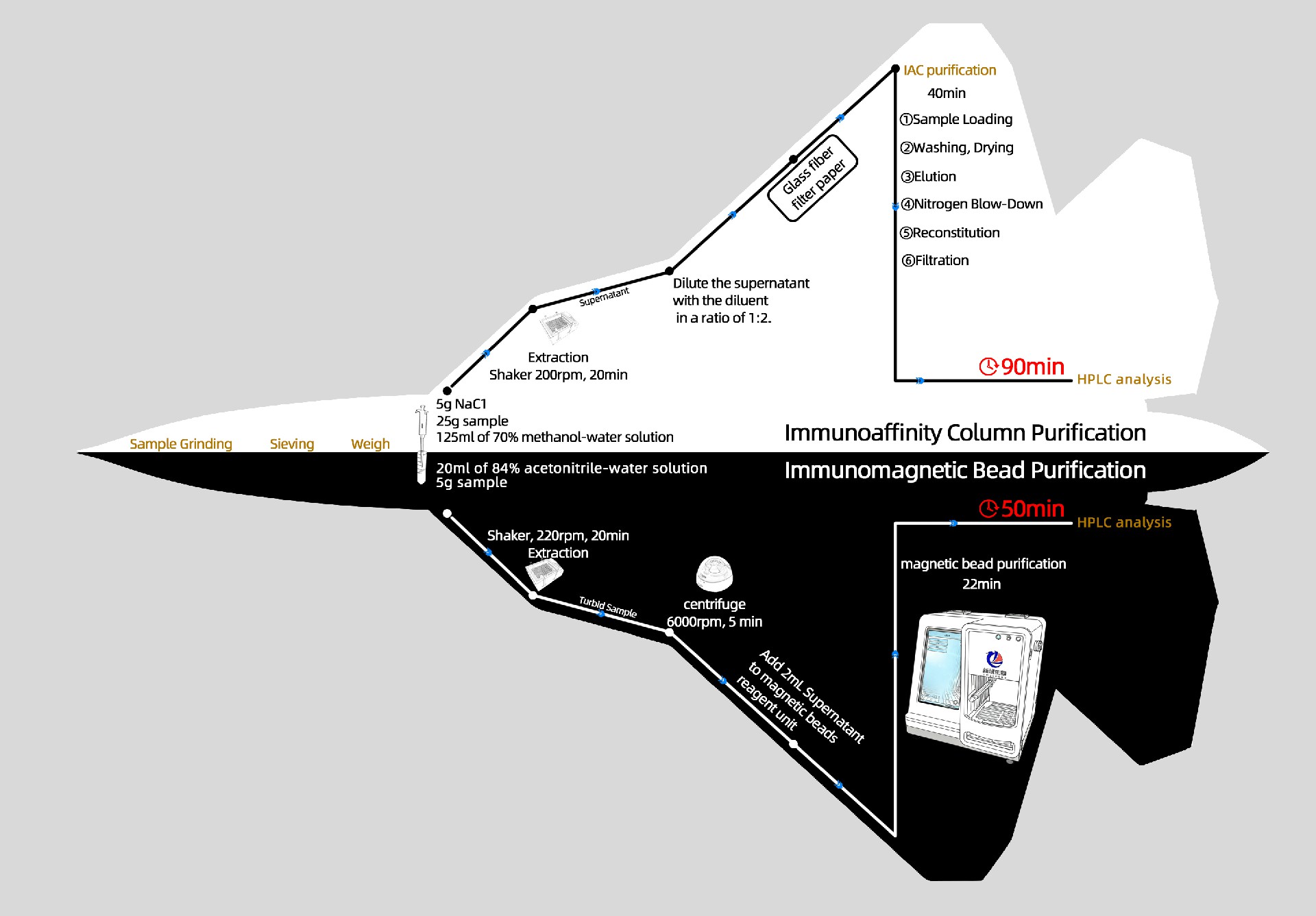

Automated Immunomagnetic Bead Purification System
The Automated Immunomagnetic Bead Purification System integrates highly specific capture reagents with an automated operation platform, enabling the rapid separation, enrichment, and detection of target analytes such as pathogenic microorganisms, mycotoxins, and veterinary drug residues in food. This significantly enhances detection efficiency and speed.
The system's high efficiency is mainly reflected in three aspects:
-
Full automation replacing manual operations
-
Magnetic field-directed separation shortening the workflow
-
High-throughput parallel sample processing
Compared with traditional immunoaffinity column purification methods, it boasts more prominent advantages including simplified operation, improved efficiency, optimized recovery rates, and excellent compatibility with automation systems—representing an important development direction in sample pretreatment technology!
| Comparison Dimension | Immunomagnetic Beads | Immunoaffinity Column | Advantage Analysis |
|---|---|---|---|
| Degree of Automation | Fully automated | Semi-automated, multiple manual steps required | Beads show significant advantage |
| Level of Manual Involvement | Low, one-click operation | High, requires continuous monitoring | Beads save labor |
| Batch Processing Capacity | High (1–30 samples/batch) | Low (usually single-sample sequential) | Beads have high throughput |
| Sample Pre-treatment Requirements | Only crude extraction needed | Often requires refined extraction | Beads have simplified workflow |
| Organic Solvent Consumption | Low | Relatively high | Beads are more eco-friendly |
| Long-term Overall Cost | Lower (considering labor and efficiency) | Higher | Beads are more cost-effective |
| Performance Parameter | Immunomagnetic Beads | Immunoaffinity Column | Advantage |
|---|---|---|---|
| Sample Processing Time | 15–20 min/sample | 30 min/sample | Immunomagnetic Beads |
| Spike Recovery Rate | 90%–110% | 88%–105% | Immunomagnetic Beads |
| Precision | <4% | <5% | Immunomagnetic Beads |
| Purification Efficiency | Excellent, minimal background interference | Good, occasional matrix interference | Comparable |
| Sensitivity | High (µg/kg level) | High (µg/kg level) | Comparable |
| Comparison Dimension | Immunomagnetic Beads | Immunoaffinity Column |
|---|---|---|
| Core Principle | Magnetic beads are coupled with specific antibodies; magnetic field separates bead–target complex from the sample | Specific antibodies are immobilized on solid-phase column; sample flows through by gravity or pressure to capture targets |
| Automation Level | Fully automated | Semi-automated, multiple steps require manual work |
| Manual Involvement | Low; one-click start, fully mechanical automation | High; requires continuous manual monitoring |
| Processing Throughput | High throughput; can process 1–30 samples per batch in parallel | Relatively low; usually processes single or few samples sequentially |
| Sample Pretreatment Requirement | Only coarse extraction needed (≈30 min) | Often requires fine extraction pre-treatment (≈60 min) |
| Recovery Rate | 90%–110% | 88%–105% |
| Precision (RSD) | <4% | <5% |
| Organic Solvent Consumption | Low (more eco-friendly) | Relatively high |
| Sample Applicability | Suitable for various matrices such as corn, wheat, brown rice, oils and related products | Suitable for complex matrices such as grains, nuts, milk, etc. |
| Cost Consideration | Lower (considering labor and efficiency) | Higher |
| Key Advantages | Easy and fast operation; automation-friendly; high throughput; suitable for suspended samples and large-scale screening | Highly efficient for low-concentration target enrichment; simple equipment requirements |
Summary Analysis
-
Automation and Efficiency: Immunomagnetic beads have significant advantages in automation level, manual involvement and processing throughput, suitable for large-scale screening and high-throughput applications.
-
Performance: Immunomagnetic beads perform better in sample processing time, recovery rate and precision, while purification efficiency and sensitivity are comparable to immunoaffinity columns.
-
Cost-effectiveness: Considering labor costs and efficiency factors, immunomagnetic beads have lower long-term overall costs and consume less organic solvents, making them more environmentally friendly.
-
Application Scenarios: Immunomagnetic beads are more suitable for automated, high-throughput scenarios; immunoaffinity columns still have advantages in low-concentration target enrichment and equipment simplicity.
