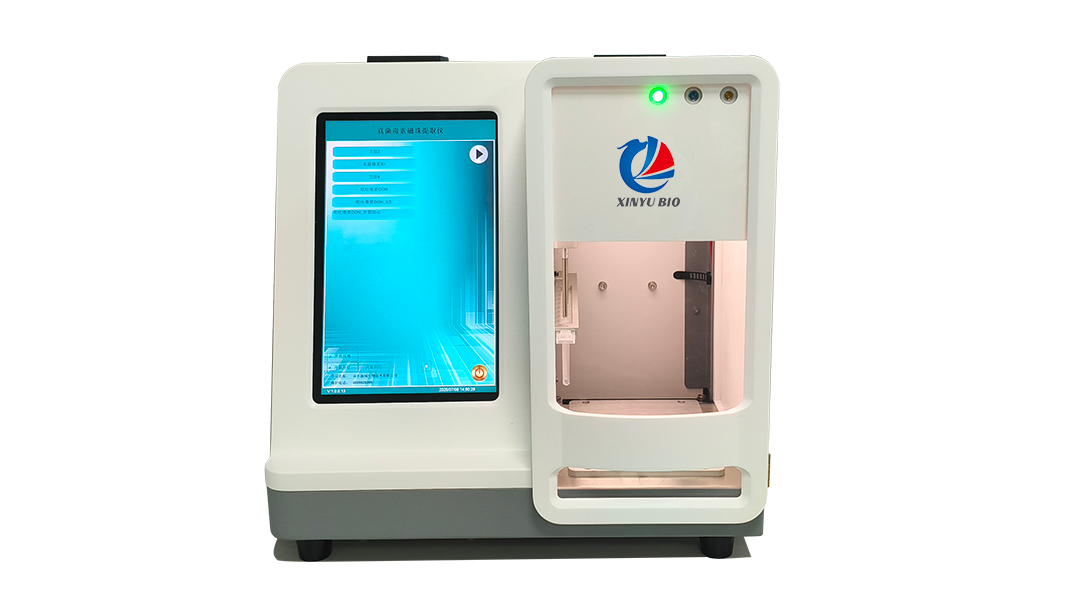

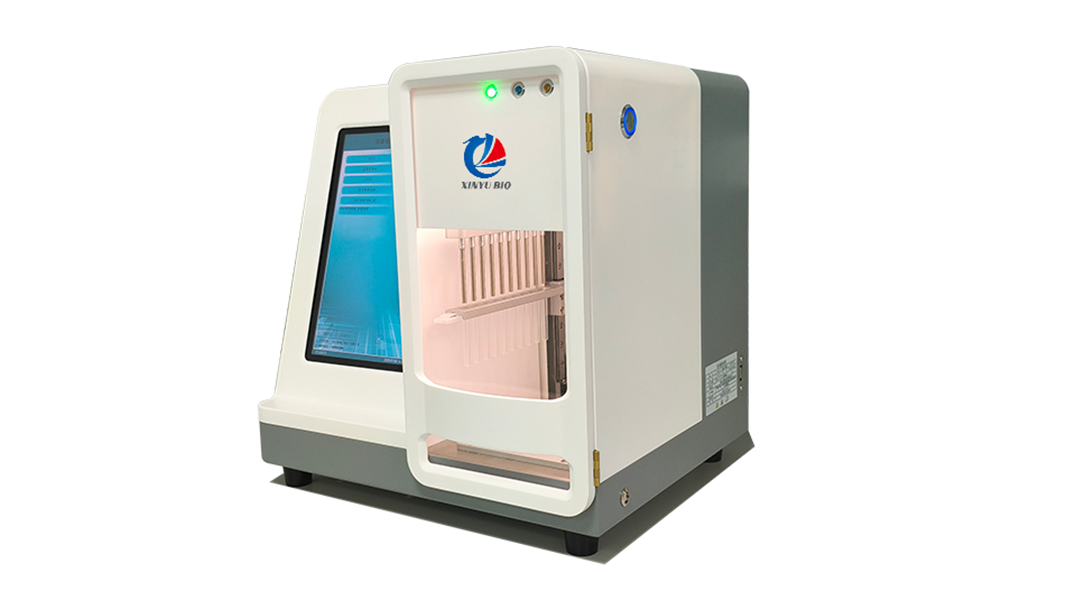

XY - 100 Immunomagnetic Bead Extraction System
Immunomagnetic Bead Extraction System is a dedicated instrument for automated sample purification in testing. After extracting mycotoxins from samples, the target analytes in the extract are specifically adsorbed onto antibodies coated on magnetic bead surfaces. Through the built-in magnetic rod, it performs high-throughput processes including magnetic adsorption, transfer, washing, and elution automatically, when paired with different analytical instruments (e.g., HPLC, UHPLC, LC-MS), it enables rapid, high-throughput, and high-precision analysis of target substances in samples.
Technical principle:
Immunoaffinity Column VS Immunomagnetic Beads
| Principle | Immunoaffinity Column | Immunomagnetic Beads |
|---|---|---|
| Principle | Utilizes the high affinity between antibodies and specific antigens to achieve separation and purification of target substances. | Utilizes immunological antigen-antibody reactions and magnetic bead separation technology for separation and purification. |
| Pretreatment Complexity | Relatively complex, requires refined sample preparation (Pretreatment time: 60 minutes) | Simple, crude sample preparation is sufficient (Pretreatment time: 30 minutes) |
| Operational Convenience | Relatively cumbersome steps. Requires manual addition of sample/wash buffers with liquid passing via gravity/pressure. | Relatively simple and fast. Enables high-throughput automated processing, suitable for large sample volumes. |
| Applicable Scenarios | Suitable for scenarios requiring extreme sample purity. High specificity, thorough purification. | Suitable for high-throughput automated processing. Uniform bead size ensures high detection repeatability and outstanding purification results. |
| Nitrogen lowing Required | Yes | No |
| Detection Time | 30 minutes | 15 minutes |
| Cost | Relatively higher | Relatively lower |
Product Advantages
-
Automated Processing: No manual operation required, reduces human error.
-
High Efficiency: Processes 1-30 samples simultaneously with short purification time.
-
Stable Operation: Excellent inter-batch reproducibility, quiet running with zero vibration.
-
UV Disinfection: Equipped with UV sterilization and HEPA-filtered exhaust fan system.
-
Control System: 10-inch color touchscreen displaying real-time procedure progress.
-
Safety Features: Accessible emergency stop button, fully enclosed design, and automatic shutdown when the door is opened.

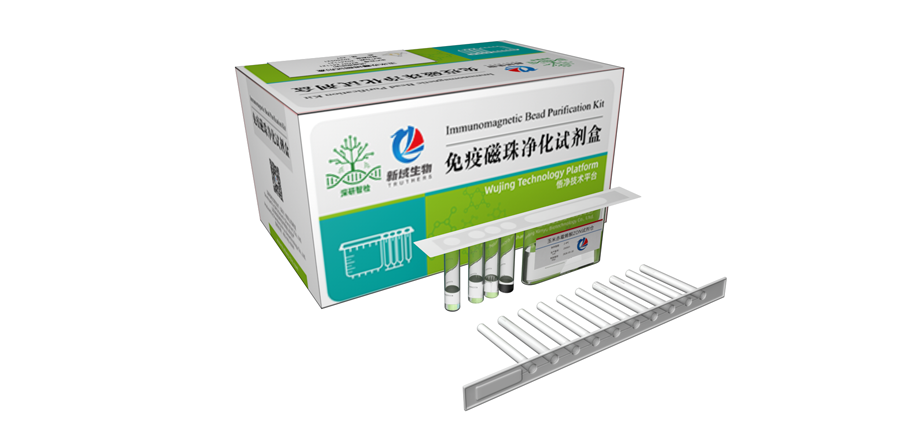

Reagents & Consumables
After extraction of target analytes from the sample, the extract is added to binding wells. Analytes are specifically captured by antibodies immobilized on magnetic bead surfaces. An automated high-throughput process - including magnetic separation, transfer, washing, and elution - is performed by the instrument's integrated magnetic rods. When coupled with HPLC or HPLC-MS enables rapid, efficient, and highly accurate analysis of target analytes.
product information
| No. | Test Item | Specs | Application Scope |
|---|---|---|---|
| XY - AFT | Total Aflatoxin Immunomagnetic Beads Kit | 20T | Cereals & oils, animal feed, nuts, traditional |
| XY - AFB1 | Aflatoxin B1 Immunomagnetic Beads Kit | 20T | Chinese medicine, tea, spices, etc. |
| XY - ZEN | Zearalenone Immunomagnetic Beads Kit | 20T | Cereals, animal feed, alcoholic beverages, spices, etc. |
| XY - DON | Deoxynivalenol Immunomagnetic Beads Kit | 20T | Vegetable oil, corn, traditional Chinese medicines, etc. |
| XY - OTA | Ochratoxin A Immunomagnetic Beads Kit | 20T | Cereals & oils, animal feed, etc. |
| XY - AFM1 | Aflatoxin M1 Immunomagnetic Beads Kit | 20T | Milk, milk powder, cheese and other dairy products |
