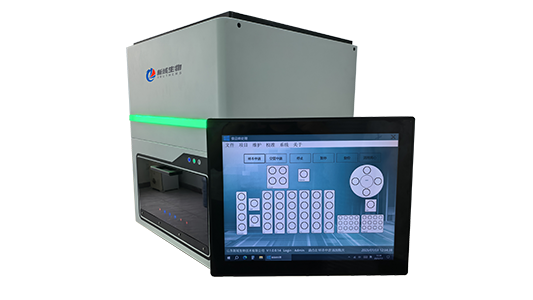

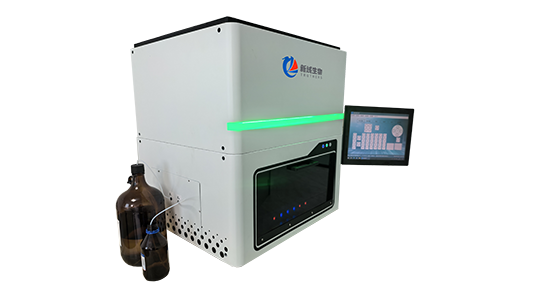

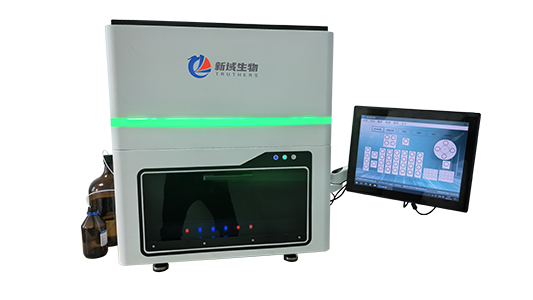

XT-1000 Food Safety Pretreatment Workstation
A fully automated food safety pre-treatment system integrating sample weighing, reagent addition, capping, shaking, and centrifugation via robotic arm transfer. Widely applied in Food, Feed, Grain, Edible Oil, and traditional Chinese medicine industries for detecting:
Biotoxins
Pesticide/Veterinary drug residues
Organic compounds

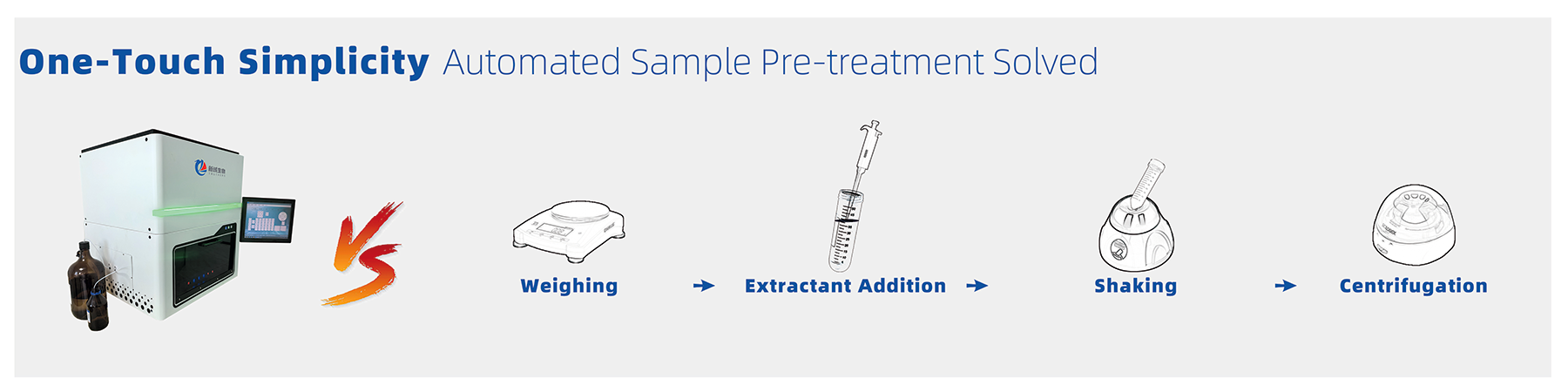

One-Touch Simplicity Automated Sample Pre-treatment Solved
Product advantages
Automated Processing: No manual operation required, reducing human error.
Convenient Operation: Program logic freely adjustable; import programs via USB drive.
High Speed & Efficiency: Supports continuous sample loading; fully automated process.
Control System: 15-inch color touch screen with step-by-step progress display.
Safety Features: An emergency stop switch within easy reach, fully enclosed machine body, and automatic shutdown when the door is opened.
Alert Function: Configured with sound and light alarms to promptly indicate working status and facilitate timely handling.

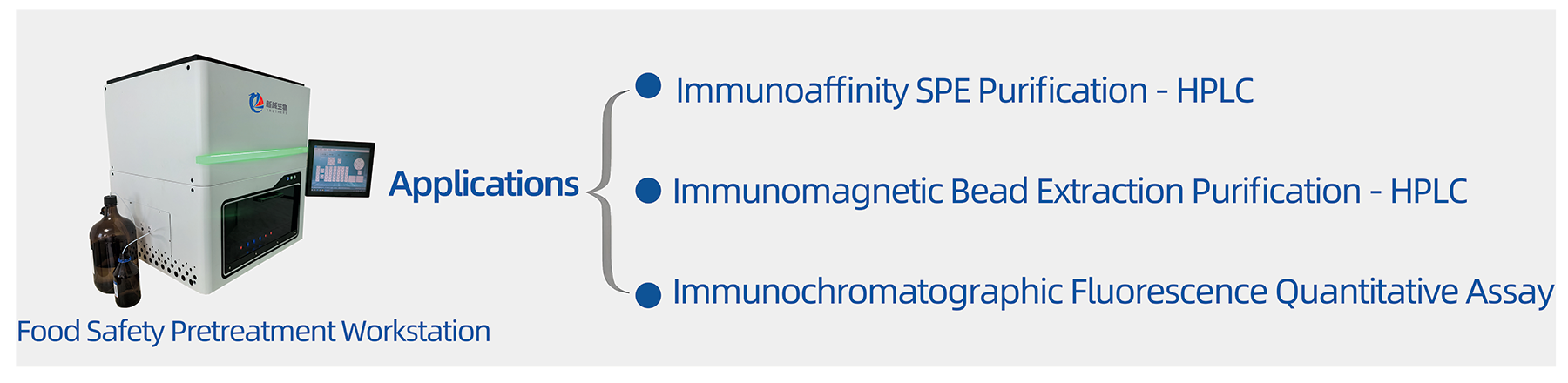

Instrument Applicability
Performance Parameters
| Parameter | Details |
|---|---|
| Power Supply | Voltage: 220V (±10%), Frequency: 50-60Hz |
| Power Consumption | 350W |
| Robotic Arm | A robotic arm is designed to transfer test tubes to various work modules. |
| Sample Capacity | 24×50mL samples (2ubes (4×6 tube racks) |
| Cap Storage | 1×50mL cap rack (24 caps) |
| Weighing Module | 1 weighing position (tare & sample weighing) Accuracy: ≤±0.5%, CV≤0.1% |
| Centrifuge | 1 module with 4 positions |
| Centrifuge Speed | Adjustable 3-speed: Low: 1,000rpm· Medium: 2,000rpm· High: 3,000rpm |
| Balancing Positions | • Centrifuge balancing position • Weighing calibration position |
| Shaking Module | 1 module with 4 sample positions Stepless speed regulation: 1-255 rpm |
| Reagent Addition | 1 module with 4 sample positions Supports 2 reagent types |
| Dispensing Range | 1mL-10mL Accuracy: ≤±1%, CV≤0.6% |
| Capping Station | 1 position (sealing clamp mechanism) |
| Audible/Visual Alarms | Channel-specific alarms for process anomalies |
| Sterilization | UV disinfection + Built-in HEPA filtration (negative pressure) |
| Data Interfaces | USB, Ethernet |
| Control Interface | 15-inch high-resolution color touchscreen |
| Operating System | Windows OS with intelligent scheduling algorithm |
| Dimensions | 670×625×780mm (L×W×H) |
| Weight | 80kg |
