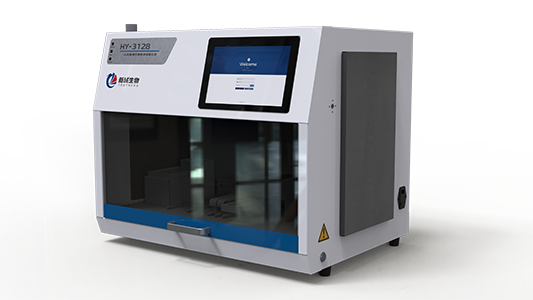

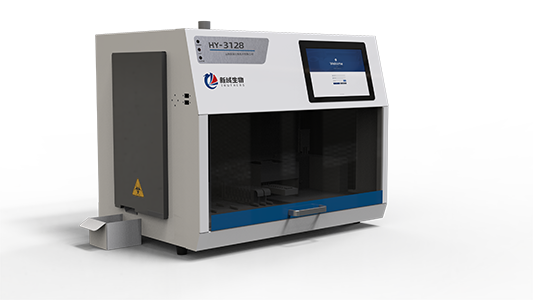

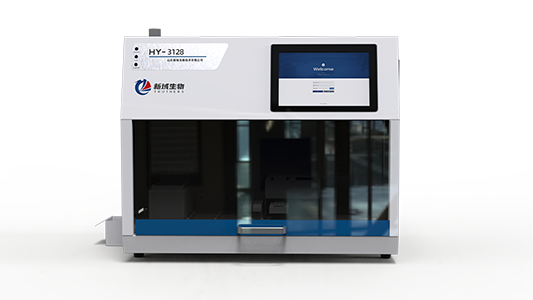

HY-3128 Fully Automated Mycotoxin Detection Workstation

Tags:

The HY-3128 fully automated mycotoxin detection workstation enables complete automation of processes such as incubation, shaking, liquid dispensing, and reading. It is widely used for detecting the content of mycotoxins in industries including food, feed, grains and oils, dairy products, and traditional Chinese medicine.

HY-3128 Fully Automated Mycotoxin Detection Workstation

Product Advantages

Automated Processing: No manual operation required, reduces human error.
Convenient Operation: Program logic freely adjustable; import programs via USB drive.
Reliable Performance: Utilizes disposable consumables to minimize fluidic contamination and operator exposure to hazardous reagents.
High Efficiency: Supports continuous sample loading; fully automated throughout the entire process.
Control System: 10-inch color touchscreen displaying real-time procedure progress.
Safety Features: Accessible emergency stop button, fully enclosed design, and automatic shutdown when the door is opened.
Alert Function: Configured with sound and light alarms to promptly indicate working status and facilitate timely handling.

Standard Title

Standard Title	Issuing Authority
NY/T 2548-2014 Determination of Aflatoxin B1 in Feeds: Time-resolved fluoroimmunochromatographic method	Ministry of Agriculture, PRC
LS/T 6143-2023 Inspection of Grains and Oils : Determination of Aflatoxin B1 in Cereals- Quantitative time-resolved fluoroimmunochromatographic method	State Administration of Grain, China

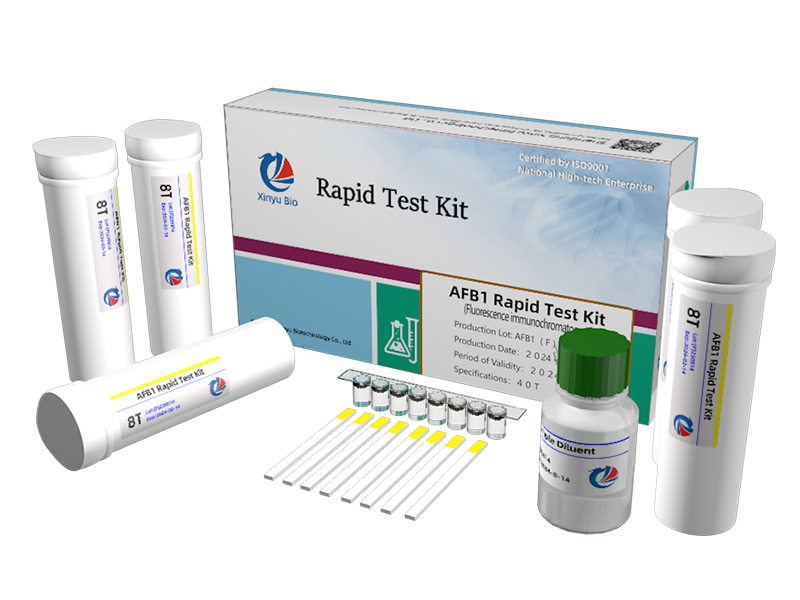

Fluorescent Quantitative Rapid Test Kit

Test Item	Linear Range (ppb)	Specs	Sample Types
Aflatoxin B₁	1-50	40T	Grains, feed, oils, flour, traditional Chinese medicine, etc.
Deoxynivalenol (DON)	100-8000	40T
Zearalenone (ZEN)	10-1000	40T
Fumonisins	100-8000	40T
T-2 Toxin	10-500	40T
Ochratoxin A	10-100	40T

Performance Parameters

Parameter	Details
Power Supply	220V (±10%), 50-60 Hz
Power Consumption	100W
Plug Type	GB Standard (China Compliant)
Pipette Tips	Disposable Tips: Eliminates sample carryover and dilution effects
Pipetting needle	Independent channel with mixing function
Pipetting Precision	CV ≤1% at 100μL
Volume Range	5-1000 μL
Robotic Arm	1 Robotic Arm Transfers strip holders, reading, reaction, incubation, scanning
Shaking Incubation	2 modules × 24 positions (total 48)
Static Incubation	2 modules × 8 card carriers (total 16 carriers)
Sample Capacity	2 racks × 8 positions (16×50 mL tubes)
Reagent Capacity	2 bottles (50 mL each)
Tip Capacity:	96×750 μL disposable tips
Detection Module:	Dual-channel reader
Barcode System	- External: Sample/curve scanning - Internal: Test strip scanning
Strip holder Type:	3 strips holder
Alarm System	Audible and visual alerts
Interfaces	USB 2.0×2, RJ45×1
Connectivity:	Wi-Fi, Remote control capability
Scanning Functions:	QR code for curves/test strips/samples
Program Management:	Create/edit/delete/import/export protocols
Control System	10" color touchscreen (adjustable frequency/timing)
Dimensions	700×490×560 mm (L×W×H)
Weight	80 kg
