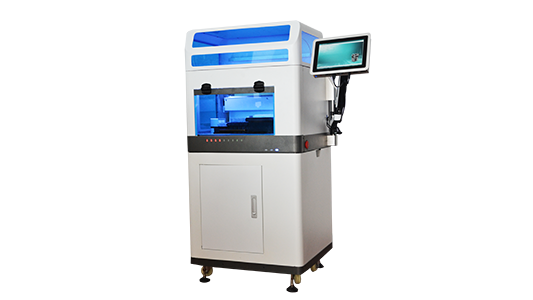

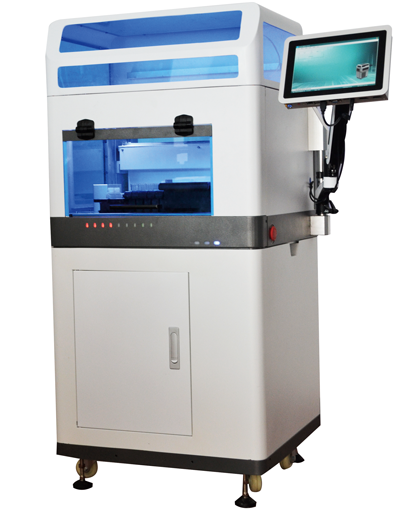

XY-001 Fully Automated ELISA Workstation

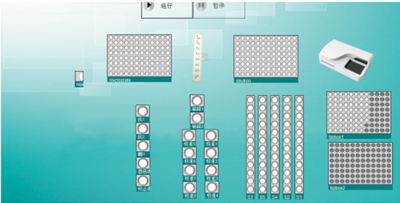

The fully automated ELISA workstation is an instrument capable of performing the entire process from sample loading to microplate reader detection automatically. It supports combined sample loading for multiple test analytes, simultaneous initiation of 1 to N test analyses, and flexible combination of assays. Equipped with the Windows full-touch screen operating system, it operates stably, allows flexible scheduling of experimental processes, and generates customizable test report summaries.

Instrument Applicability

Modular design: Independent operation of all components (sample loading, incubation, plate washing, reading) ensures complete experimental continuity.
Direct reagent-bottle loading: Bottles are designed to perfectly fit the device carrier rack, enabling direct loading without transfer-simple, convenient, and avoiding liquid cross-contamination.
Automatic alarmer: Comprehensive alert functions including liquid surface sensing, liquid volume detection, and digital temperature display.
High throughput: Simultaneous processing of up to 96 wells per run with automatic calibration curve generation.

XY-001 Fully Automated ELISA Workstation

Standard Title

Standard Title	Issuing Authority
GB/T 17480-2008 Determination of Aflatoxin B1 in Feeds: Enzyme-Linked Immunosorbent Assay.	General Administration of Quality Supervision, Inspection and Quarantine of China (AQSIQ)

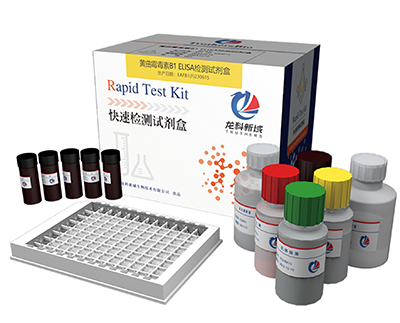

Matched reagents

Test Item	Linear Range (ppb)	Specs	Sample Types
Aflatoxin B1 ELISA Test Kit	2-50	96T	Grains, feed, oils, flour, traditional Chinese medicine, etc.
Deoxynivalenol (DON) ELISA Test Kit	250-5000	96T
Zearalenone (ZEN) ELISA Test Kit	25-1000	96T
Fumonisins ELISA Test Kit	200-5400	96T
T-2 Toxin ELISA Test Kit	20-500	96T
Ochratoxin A ELISA Test Kit	1-30	96T

performance parameters

Parameter	Details
Power Supply	Voltage: 220V (±10%), Frequency: 50 - 60Hz
Power Consumption	450W
Basic Functions	Automatically complete ELISA experiments including sampling,
Sampling Function	Accuracy ≤2% at 100μL Precision ≤1% at 100μL Range 5 - 800μL
Analysis Ability	Process one 96-well plate per batch
Pre-dilution	Multiple dilution modes, serial proportional dilution
Sampling Principle	Dynamic displacement sampling (no liquid dilution, no conduits, no system contamination)
Shaking Module	Left-right reciprocating shaking Multi-gear settings Adjustable time, amplitude, frequency
Incubation Module	1 incubating/shaking position; RT ~ 55℃; Accuracy ≤±0.5℃
Plate Washing	8-needle system Two wash buffer options Dispensing capacity 50 - 1000μL
Filters	Four filters (405nm/450nm/492nm/630nm)Two spare positions
Measurement Time	Single-wavelength: 8s; Dual-wavelength: 15s

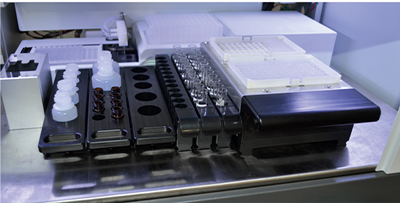

Sample Positions	Five racks (5×12 positions)
Reagent Positions	Two main positions + interchangeable racks
Needle holder	1 waste tip location
Tip Rack	One rack position, dual online tip boxes (96×2)
Machine Control	Options: Retry/Ignore/Terminate No impact on overall experiment
Alarm Handling	10inch color touch screen Adjustable frequency/time User-friendly operation
Dimensions	700×560×1500mm (L×W×H)
Weight	96kg

Collection of testing products

Meat Eggs Milk Grain Melons Vegetables

XY-001 Fully Automated ELISA Workstation
